Merge pull request #169 from Microsoft/screenimgeditor

Initial screen field editor.
This commit is contained in:
Sam El-Husseini 2018-01-04 08:37:56 -08:00 committed by GitHub
commit 95e47a0b25
No known key found for this signature in database
GPG Key ID: 4AEE18F83AFDEB23
31 changed files with 120 additions and 2 deletions

View File

@ -3,6 +3,7 @@
import { deployCoreAsync, initAsync } from "./deploy";
import { FieldPorts } from "./field_ports";
import { FieldImages } from "./field_images";
pxt.editor.initExtensionsAsync = function(opts: pxt.editor.ExtensionOptions): Promise<pxt.editor.ExtensionResult> {
pxt.debug('loading pxt-ev3 target extensions...')
@ -11,6 +12,9 @@ pxt.editor.initExtensionsAsync = function(opts: pxt.editor.ExtensionOptions): Pr
fieldEditors: [{
selector: "ports",
editor: FieldPorts
}, {
selector: "images",
editor: FieldImages
}],
deployCoreAsync
};

114
editor/field_images.ts Normal file
View File

@ -0,0 +1,114 @@
/// <reference path="../node_modules/pxt-core/localtypings/blockly.d.ts"/>
/// <reference path="../node_modules/pxt-core/built/pxtblocks.d.ts"/>
/// <reference path="../node_modules/pxt-core/built/pxtsim.d.ts"/>
export interface FieldImagesOptions extends pxtblockly.FieldImageDropdownOptions {
}
export class FieldImages extends pxtblockly.FieldImageDropdown implements Blockly.FieldCustom {
public isFieldCustom_ = true;
constructor(text: string, options: FieldImagesOptions, validator?: Function) {
super(text, options, validator);
}
/**
* Create a dropdown menu under the text.
* @private
*/
public showEditor_() {
// If there is an existing drop-down we own, this is a request to hide the drop-down.
if (Blockly.DropDownDiv.hideIfOwner(this)) {
return;
}
// If there is an existing drop-down someone else owns, hide it immediately and clear it.
Blockly.DropDownDiv.hideWithoutAnimation();
Blockly.DropDownDiv.clearContent();
// Populate the drop-down with the icons for this field.
let dropdownDiv = Blockly.DropDownDiv.getContentDiv();
let contentDiv = document.createElement('div');
// Accessibility properties
contentDiv.setAttribute('role', 'menu');
contentDiv.setAttribute('aria-haspopup', 'true');
const options = this.getOptions();
for (let i = 0, option: any; option = options[i]; i++) {
let content = (options[i] as any)[0]; // Human-readable text or image.
const value = (options[i] as any)[1]; // Language-neutral value.
// Icons with the type property placeholder take up space but don't have any functionality
// Use for special-case layouts
if (content.type == 'placeholder') {
let placeholder = document.createElement('span');
placeholder.setAttribute('class', 'blocklyDropDownPlaceholder');
placeholder.style.width = content.width + 'px';
placeholder.style.height = content.height + 'px';
contentDiv.appendChild(placeholder);
continue;
}
let button = document.createElement('button');
button.setAttribute('id', ':' + i); // For aria-activedescendant
button.setAttribute('role', 'menuitem');
button.setAttribute('class', 'blocklyDropDownButton');
button.title = content.alt;
if ((this as any).columns_) {
button.style.width = (((this as any).width_ / (this as any).columns_) - 8) + 'px';
//button.style.height = ((this.width_ / this.columns_) - 8) + 'px';
} else {
button.style.width = content.width + 'px';
button.style.height = content.height + 'px';
}
let backgroundColor = this.sourceBlock_.getColour();
if (value == this.getValue()) {
// This icon is selected, show it in a different colour
backgroundColor = this.sourceBlock_.getColourTertiary();
button.setAttribute('aria-selected', 'true');
}
button.style.backgroundColor = backgroundColor;
button.style.borderColor = this.sourceBlock_.getColourTertiary();
Blockly.bindEvent_(button, 'click', this, (this as any).buttonClick_);
Blockly.bindEvent_(button, 'mouseup', this, (this as any).buttonClick_);
// These are applied manually instead of using the :hover pseudoclass
// because Android has a bad long press "helper" menu and green highlight
// that we must prevent with ontouchstart preventDefault
Blockly.bindEvent_(button, 'mousedown', button, function (e) {
this.setAttribute('class', 'blocklyDropDownButton blocklyDropDownButtonHover');
e.preventDefault();
});
Blockly.bindEvent_(button, 'mouseover', button, function () {
this.setAttribute('class', 'blocklyDropDownButton blocklyDropDownButtonHover');
contentDiv.setAttribute('aria-activedescendant', this.id);
});
Blockly.bindEvent_(button, 'mouseout', button, function () {
this.setAttribute('class', 'blocklyDropDownButton');
contentDiv.removeAttribute('aria-activedescendant');
});
let buttonImg = document.createElement('img');
buttonImg.src = content.src;
//buttonImg.alt = icon.alt;
// Upon click/touch, we will be able to get the clicked element as e.target
// Store a data attribute on all possible click targets so we can match it to the icon.
button.setAttribute('data-value', value);
buttonImg.setAttribute('data-value', value);
button.appendChild(buttonImg);
contentDiv.appendChild(button);
}
contentDiv.style.width = (this as any).width_ + 'px';
dropdownDiv.appendChild(contentDiv);
Blockly.DropDownDiv.setColour(this.sourceBlock_.getColour(), this.sourceBlock_.getColourTertiary());
// Calculate positioning based on the field position.
var scale = this.sourceBlock_.workspace.scale;
var bBox = { width: this.size_.width, height: this.size_.height };
bBox.width *= scale;
bBox.height *= scale;
var position = this.fieldGroup_.getBoundingClientRect();
var primaryX = position.left + bBox.width / 2;
var primaryY = position.top + bBox.height;
var secondaryX = primaryX;
var secondaryY = position.top;
// Set bounds to workspace; show the drop-down.
(Blockly.DropDownDiv as any).setBoundsElement(this.sourceBlock_.workspace.getParentSvg().parentNode);
(Blockly.DropDownDiv as any).show(this, primaryX, primaryY, secondaryX, secondaryY,
(this as any).onHide_.bind(this));
}
}

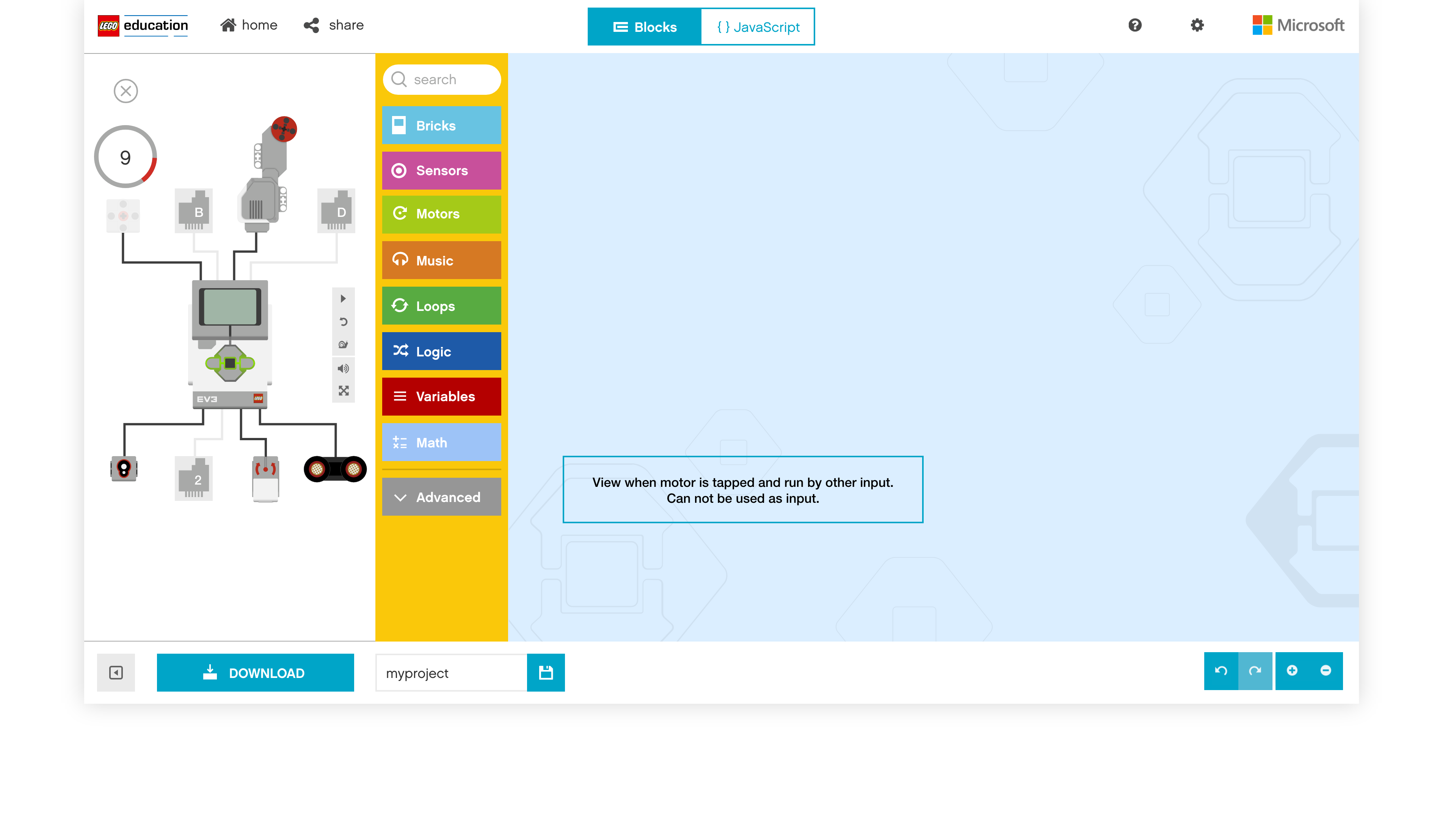

Binary file not shown.

After

Width:  |  Height:  |  Size: 375 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 384 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 383 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 418 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 386 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 442 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 404 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 430 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 428 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 426 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 425 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 428 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 422 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 429 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 423 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 413 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 408 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 478 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 407 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 408 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 351 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 346 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 366 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 382 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 424 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 132 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 132 KiB

Binary file not shown.

After

Width:  |  Height:  |  Size: 270 KiB

View File

@ -151,9 +151,9 @@ namespace brick {
* @param image the image
*/
//% blockId=screen_image_picker block="%image" shim=TD_ID
//% image.fieldEditor="imagedropdown"
//% image.fieldEditor="images"
//% image.fieldOptions.columns=6
//% image.fieldOptions.hasSearchBar=true
//% image.fieldOptions.width=600
//% group="Screen" weight=0 blockHidden=1
export function __imagePicker(image: Image): Image {
return image;
